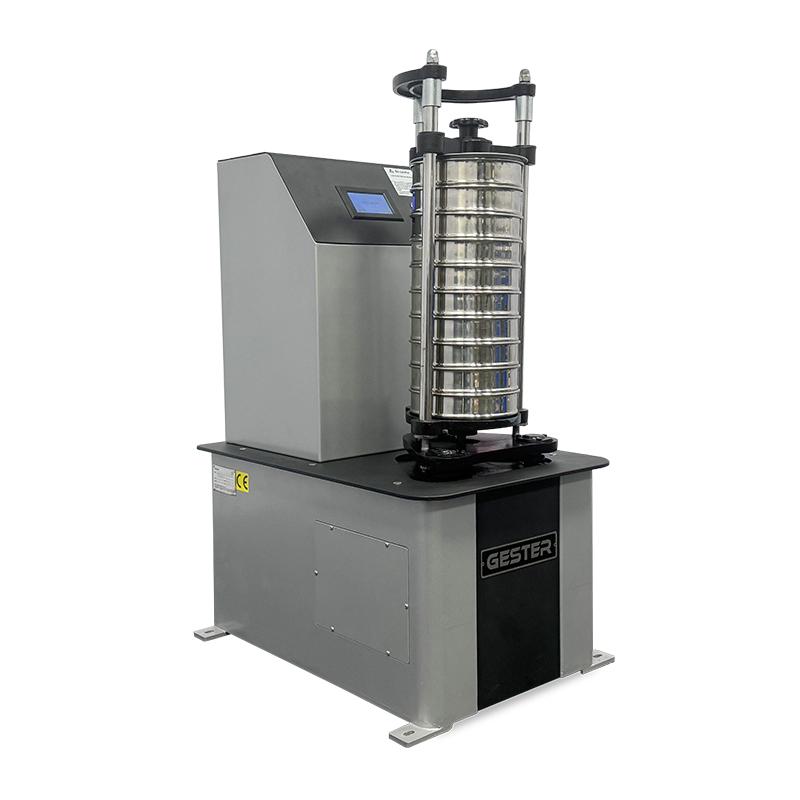

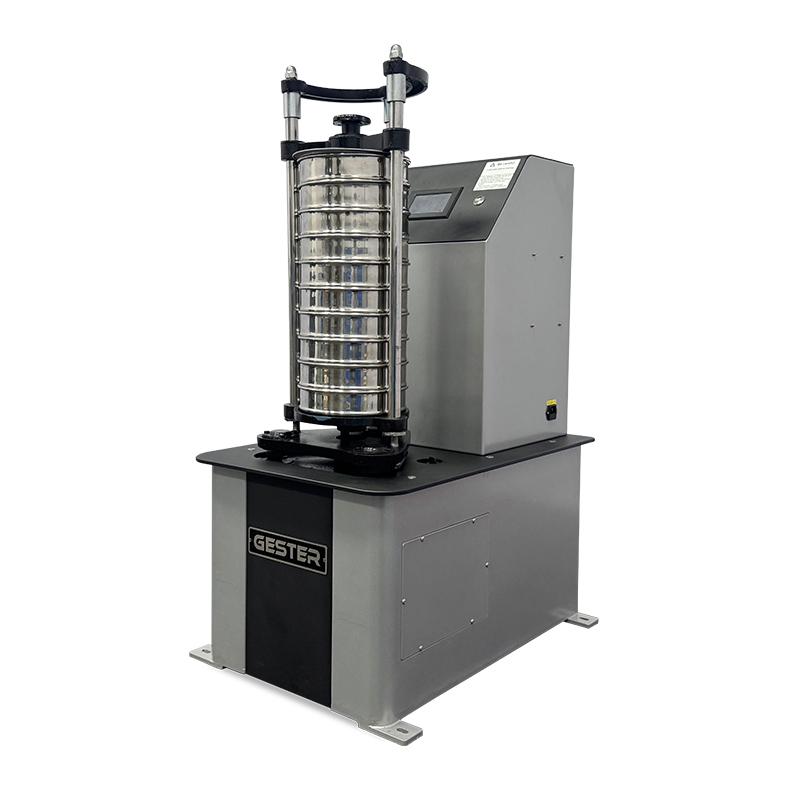

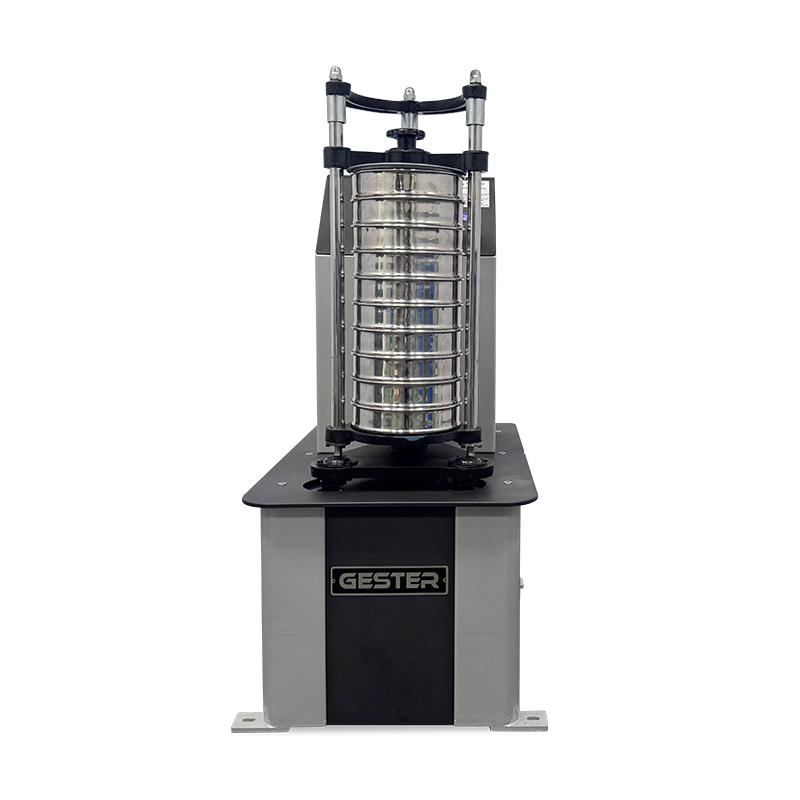

Geotextile Effective Opening Size Tester-Dry Sieving Method GT-C90-2

Opening Size Tester (Dry Sieving)

Brand:
GESTER
Item NO.:
GT-C90-2
Order(MOQ):
1
Lead Time：
15-30 days

Inquire now

Product Detail

Product Introduction

Application:

This equipment is used to determine the apparent opening size of a single layer geotextile or geotextile related products, using the dry sieving principle.

It applicable to geological, metallurgical, chemical, coal, defense, scientific research, grinding wheel, cement, construction and other sector’s test and laboratory’s materials analysis.

Key Specification

Model	GT-C90-2
Max Diameter of Sifters	200mm
Screen Layer Stackle	400mm
Rotation Radius	12±1mm
Horizontal Shake Frequency	220±10 RPM
Vertical Vibration Frequency	150±10 RPM
Amplitude	10±2mm
Power Supply	1∮ AC 220V 50/60Hz
Dimensions	680×450×750mm
Weight	100kg
Standards	JTG E50, GB/T 14799, ASTM D4751

Accessories

Standards accessories	1pc	Sifter
	1pc	Power Line
	1pc	Balance 300g, Precision 0.01g
	1pc	Standard Grain

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Geotextile Effective Opening Size Tester-Dry Sieving Method GT-C90-2
