Textile Tensile Testing Machine: Beginners & Experts Guide

If you are looking for any information on textile tensile testing machines, you will find the information right here.

Keep reading to learn more.

I. What is a Textile Tensile Testing Machine?

A fabric tensile tester, also widely referred to as a textile tensile testing machine, is a conventional material testing instrument that exploits a controlled mechanical pulling system to evaluate the strength, elongation and failure properties of solid fabric and flexible materials.

Testing the tensile properties of fabrics of ISO 13934 is divided into two parts: determination of maximum force and elongation at maximum force using the strip method and determination of maximum force using the grab method. Our ISO 13934 tensile tester for certification labs

II. Core Components & Construction

Drive System
It adopts AC PANASONIC AC servo drive system, paired with Taiwan SESAME gear reducer, synchronous pulley, and TBI precision ball screw components. This configuration enables the instrument beam to move stably with low noise and high precision of extension.

Machine Body Construction
The machine adopts aluminum alloy column shell. The surface is treated with high temperature and solidify injection molding, ensuring the machine surface will never fade and maintaining a durable, professional appearance over long-term use.

Safety Protection Measures
This dynamometer test device universal tensile testing machine adopts many kinds of protection measures to ensure operator safety and equipment longevity:
Beam’s limit cams protecting device
Clamp touch avoid protecting device
Set up protection on displacement & load software
Sensor overload protection
Sample load software protection
Overcurrent & overvoltage protection
Real time supervision to main parts, more safe & reliable while using machine

Software System & Operation Features

This fabric strength testing machine adopts an open system architecture, providing great flexibility for different testing requirements.

Open System Design
Users can edit test programs, data analysis formulas, and test reports according to the test material’s category, character, and test method requirements. This allows full customization to match specific industry standards and internal quality protocols.

Automatic Operation Modes
This universal testing machine provides many kinds of humanity automatic modes:
The machine can set clamping distance and auto location
The distance of scraping can be set freely
These automated features reduce manual operation errors and improve testing efficiency.

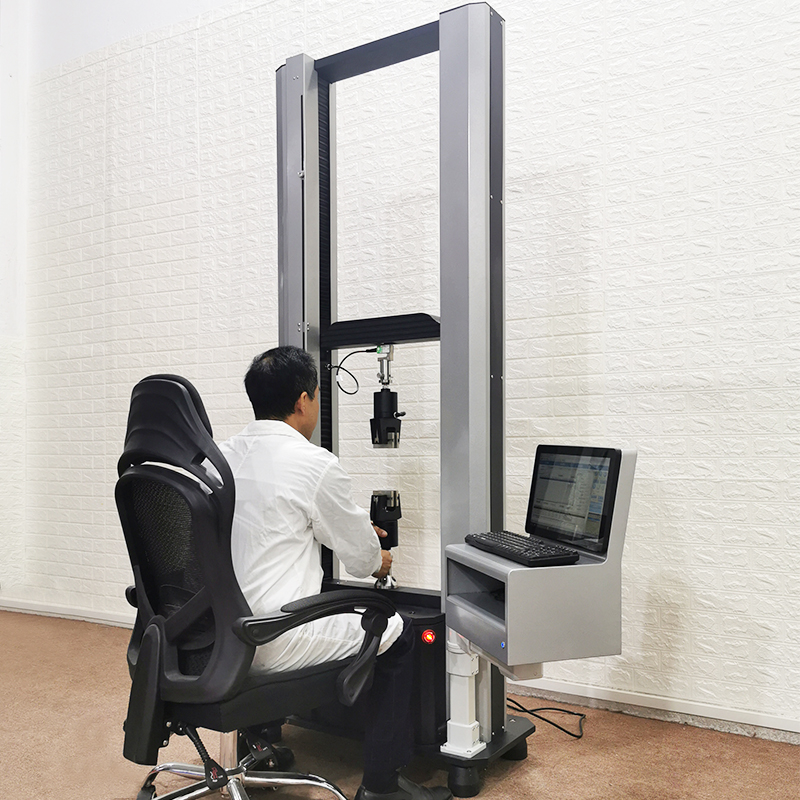

III. Advantages of the Universal Testing Machine 10KN

a. Universal: Our fabric tensile tester is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials.

b. Accuracy and Stability: Adopt AC PANASONIC AC servo drive system, Taiwan SESAME gear reducer, synchronous pulley, TBI precision ball screw components make instrument beam move stable with low noise & high precision of extension.

c. Durable Construction: Adopt aluminum alloy column shell, deal with high temperature & solidify injection on the machine surface will never fade.

d. Flexible and open system: Users can customise test programmes, data analysis formulas and test report formats according to material type, sample characteristics and test method requirements. The system can adapt to updates in standards and personalised testing needs.

e. User-Friendly Operation: Multiple humanized automatic modes reduce manual operation and setup time. Clamping distance, auto positioning and scraping distance can all be set freely to match different test requirements.

IV. Conclusion

With the right configuration and proper operation, a fabric tensile tester delivers accurate, repeatable mechanical property data for all kinds of materials.

Whether you are setting up a new lab or upgrading existing testing equipment, selecting a tester that matches your material types, test standards and daily throughput will bring long-term value to your quality control and R&D work.

GESTER offers a full range of tensile testing solutions for both beginners and expert users. We also provide standard-compliant calibration services and long-term technical support.
